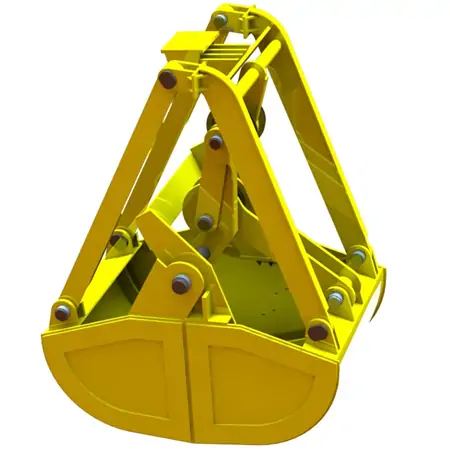

APR Bright Industries stands as a premium manufacturer of high-quality single rope touchdown grab buckets. Our mechanical grab bucket are fabricated for superior performance in handling a wide range of bulk commodities.
Furthermore, our versatile grab buckets excel with materials including iron ore, soda ash, soybeans, sugar, salt, sand, ball clay, rapeseed meal extraction, mill material, and other granular goods. We have a team of engineers committed to delivering advanced grab buckets with the automatic features of self-locking during loading and self-unloading under the surveillance of the crane operator.
Single Rope Touchdown Grab Bucket Technical Specifications

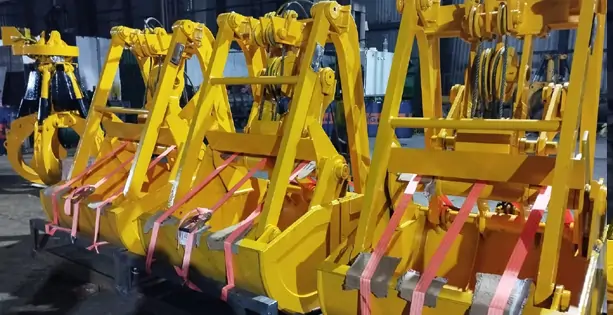

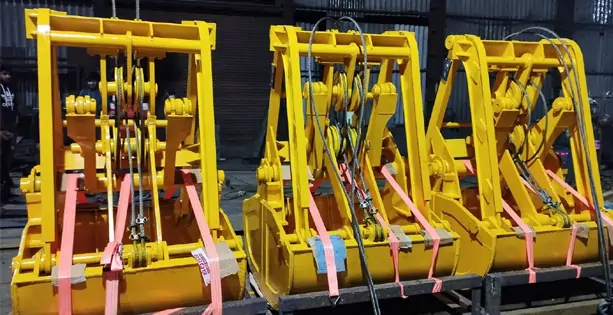

We crafted various types of single rope touchdown grab buckets and delivered them to various types of industries to load and unload material with mechanical configuration. APR Bright Industries ensures and inspects the grab buckets technical details, including.
Wire rope details: customized solution but standard diameter of 16 mm, 11.0 meters in length, and 6X36 robust construction, galvanized for durability, safety, and strength.
Empty grab weight: It is customized, as well as standard grabs have a mass of 1600 kg.
Rope revving: When grabbing closed, 3.1 meters of rope are required.
Full Open Rope Requirement: 2 meters to ensure the fully open position.
| Capacity | up to 2cbm |
| Application | heavy duty |
| Bulk Density | 3.0 t/cbm |
| Type | Single rope self dumping hook |
| Material | mild steel |

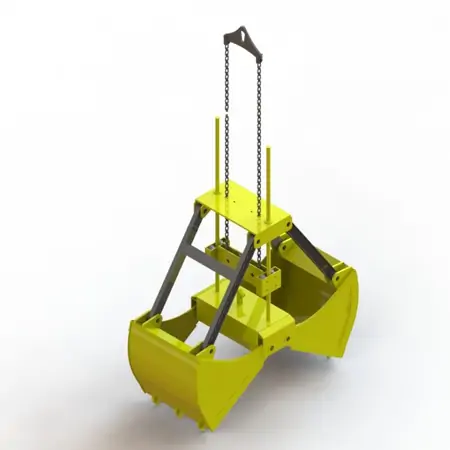

How Our Single Rope Touchdown Grab Buckets Work
Method of operation of touchdown grab bucket consider grab to be initially in fully open position, lower the grab so as to rest on the heap of material to be grabbed. Continue lowering the crane hook still further till the wire rope of grab has slackened which will ensure that the lever carrying the pulley block has swung to its lower most position. Now raise the crane hook slowly. Grab jaws will close themselves while grabbing the material when the jaws are fully closed, raise the grab up at full hoisting speed and carry at the place where material is to be discharged.
Loading and Unloading Material: Pull the hand rope to operate a lever which opens the grab in mid air allowing the contents to fall below. Alternately when hand operating mechanism is not preferred to be used, proceed as follows:-
- Allow the filled grab to rest on ground or existing heap of material or hopper top etc.
- Whenever the material is required to be discharged. continue lowering the crane hook still further till the lever carrying pulley block has swung to its lower most position.
- Now raise the crane hook, the grab jaws will open themselves leaving the contents there raise the opened grab & repeat the cycle of operation.
10m³ Single Rope Touchdown Clamshell Grab Bucket – Dimensions & Specifications
- All dimensions are in millimeters (mm).
- Variation in open & closed height = + 5%.
- All pin & axle shall be hardened & tempered 220 – 260 bhn.
Frequently Asked Question
Q: What is the specification of 15m³ Single Rope Touchdown Grab Bucket?
Ans: Single rope clamshell bucket re-handle the material and capable to load and unload the bulk material. We offers customized Mill Scale Grab capacity, height, power, length as per industry requirement.
Q: How Single Line Clamshell Buckets for Bulk Commodities work?
Ans: Opening and closing mechanism for single-cable grab bucket easily handle the process of loading and unloading of material itself. Our touchdown grab bucket is enough efficient to handle the process by itself.
Q:What is mechanism of Four Rope Mechanical Touchdown Grab?
Ans: For easy loading and unloading of material operator have to release the grab when grab touchdown the material.
