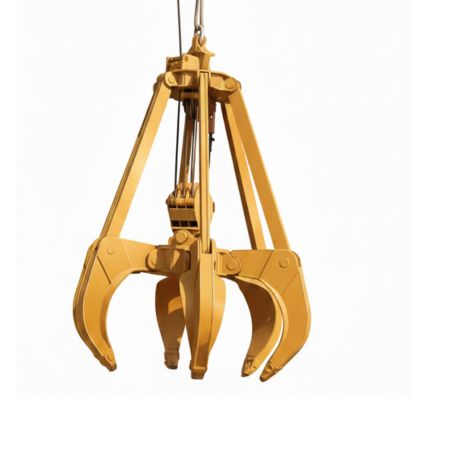

Mechanical Orange Peel Grab
The mechanical orange peel grab is known to handle a variety of materials with powerful multi-tines. The number of tines depends upon the material and application. It is operated and controlled through the crane. APR Bright Industries offers two-rope and four-rope mechanisms for closing and holding. For charging and discharging of steel scrap, armor rock, mixed scrap, dredging, compacted car bodies in obsolete car yards, rock, wood chips, etc.
Enabled with advanced features Grab buckets that do not open in the halfway because of fabrication and operating mechanisms. Crane operators lower the entire grab and touch the ground for loading and unloading material. In a mechanical grab bucket, key features is the locking mechanism, pulleys and ropes, lubrication for the moving parts, pins bushing, etc for smooth operation.
Single-rope mechanical orange peel grab
We provide a wide range of grabs that operate motor-hydraulically, mechanically, and electro-hydraulically. Single-rope grabs specifications are easy to operate, low maintenance, and ultimately customized in capacity. Mechanical Orange Peel Grabs are widely used in ports, vessels, mines, etc.
Two-Rope Mechanical Orange Peel Grab
Two rope mechanical grabs are used for attachment to two-line-operated large cranes, one for holding ropes and one for closing ropes. The rope pulleys are provided with double rust protection, ensuring an increased lifespan of the bearings or bushes.
Four-Rope Mechanical Orange Peel Grab
APR Four Rope Mechanical Grabs are used for attachment to four-line-operated large cranes, two for holding ropes and two for closing ropes. The grabs are manufactured of Weldox wear-resistant steel.
Product Key Features and Functionality
- Sturdy structure with high tensile steel.
- Anti-wear manganese steel built-in teeth.
- FEA is done according to standard. ISO 9001/2015.
- Design & fabrication according to DIN 15018.
- Grab tines can be executed in 3, 4, 5, 6, 7, or 8 open, half-closed, or fully closed.
- Grab specially built from 0.5 cbm up to 15 cbm.
- Manufacturer with superior quality anti-abrasive & anti-wear steel material for durable life.
| Technical Parameter | Engineering Specification |
|---|---|
| Operating Mechanism | Single, Two, or Four-Rope Systems (Winch Powered) |
| Lifting Capacity (SWL) | 5 to 20 Metric Tons |
| Volume Range | 0.5 m³ to 15 m³ |
| Tine Execution | 3, 4, 5, 6, 7, or 8 Jaws (Open, Semi, or Fully Closed) |
| Material Build | High-Tensile Weldox Steel Structure |
| Wear Protection | Anti-Wear Manganese Steel Built-in Teeth |
| Design Standard | Fabricated according to DIN 15018 & ISO 9001:2015 |
